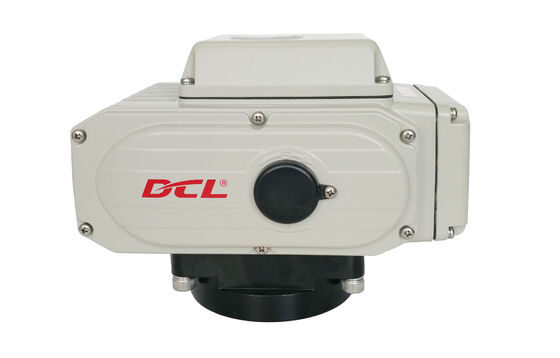

CSA UL 400Nm Fail-safe return Weather-proof Quarter Turn Electric Actuator

  • CSA UL 400Nm Fail-safe return Weather-proof Quarter Turn Electric Actuator
  • CSA UL 400Nm Fail-safe return Weather-proof Quarter Turn Electric Actuator
Luogo di origine WUHAN, CINA
Marca DCL
Certificazione CE/ROHS/CSA/IP67
Numero di modello Tutte le serie comuni DCL
Quantità di ordine minimo 1 pezzo
Imballaggi particolari Cartone/Pallet
Tempi di consegna 7 giorni lavorativi
Termini di pagamento D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione 5000 pezzi/mese
Dettagli
Nome del prodotto Attuatore elettrico di Turn Turn Certificato CSA
Angolo di installazione 360° Peso totale Da 1,2 kg a 20 kg
Potenza del motore 6W a 140 W. Caratteristica Prove meteorologica
Lasciate un messaggio
Descrizione di prodotto
CSA certificated quarter turn electric actuator/complied to UL standard
Features:
  • Torque from 18Nm to 3000Nm/160in.lbs to 26550 in.lbs
  • All parts are certified by CSA, complied to UL 429 and CSA C22.2
  • Weather proof NEMA 4/4X and IP67 sealing grade with aluminum alloy housing cover/IP 68 optional
  • Duty cycle 60% for 18Nm/160in.lbs model and 70% for all other model
  • Self-locking at any position when power off
  • Limit switches to confirm valve position/potentiometer or position transmitter optional
  • ISO 5211 multi-flange mounting
  • Manual override with wrench or handwheel
  • Optional functions such as Modbus Communication,fail-safe return,over torque protection,Dehumidifying heater and so on.
Description

Since 2013, DCL’s common-series electric actuators from Huayi Technology have been CSA certified, fully complying with both U.S. (UL) and Canadian (CSA) standards. Our explosion-proof models are currently undergoing CSA testing, with certification expected in Q3–Q4 of 2020. Furthermore, all DCL products are CE marked and RoHS 3.0 compliant, with all testing conducted by SGS to ensure international environmental and safety alignment.

Quality control is maintained through a rigorous oversight framework: any modification to components or suppliers must be documented and approved by the CSA. Additionally, CSA experts from both the Canadian headquarters and China offices perform quarterly factory audits. This strict adherence to UL and CSA protocols ensures exceptional quality stability and has earned DCL broad recognition across the North American market.

Specification:
Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-02 15S/18Nm 7S/9Nm 60S/18Nm 0~90°Adjustable 1.2Kg DC24V/AC24V AV110V/AC220V Types of A/B/E/G
DCL-05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 2.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-10 30S/100Nm 15S/50Nm 60S/100Nm 0~360°Adjustable 4.5Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 9Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-40 30S/400Nm 15S/200Nm 60S/400Nm 9.5Kg
DCL-60 45S/600Nm
10Kg
DCL-100 30S/1000Nm 15S/500Nm 0~90°Adjustable 19Kg AV110V/AC220V/AC380V Types of A/B/C/D/E/F/H
DCL-200 92S/2000Nm
19.5Kg
DCL-300 110S/3000Nm
20Kg
Performance Parameters List of Adjusting type(Type E)
DCL-MZZ 18Nm
3r 1.2Kg DC24V Type MZZ
DCL-10GE 30S/0~100Nm 15S/0~100Nm 0~90°Adjustable 4.5Kg DC24V±10% Type GE
DCL-40GE 30S/100~600Nm 15S/100~600Nm 9.5Kg
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-200 DN350~400 DN250 DN900
DCL-300 DN450~600 DN300~350 DN1000~1200
CSA UL 400Nm Fail-safe return Weather-proof Quarter Turn Electric Actuator 0 CSA UL 400Nm Fail-safe return Weather-proof Quarter Turn Electric Actuator 1
About Us:

Dynamic Corporation Limited is a high-tech, stockholding enterprise with independent export authority, specializing in the research, development, manufacture, and sales of electric actuators, electric valves, and automation control systems. The flagship DCL Series Electric Actuator is distinguished by its compact structure, refined appearance, intelligent control, outstanding performance, superior quality, and ease of operation.

DCL series actuators find wide application across industries such as petroleum, chemical, power generation, metallurgy, energy, paper making, water treatment, food & brewing, shipbuilding, as well as building automation systems. These products are highly trusted and favored by customers. Over years of field use, clients in diverse sectors have confirmed that DCL actuators consistently deliver excellence in reliability, longevity, after-sales support, and overall quality.
